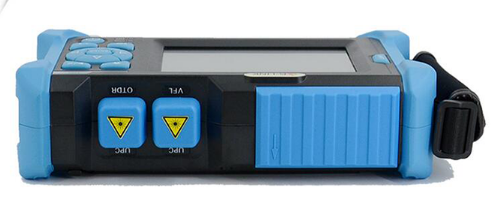

Optical Time Domain Reflectometer (OTDR) - DX600



Working Temp: -10℃~+50℃

Storage Temp: -20℃~+75℃

Relative Humidity: ≤90%, non-den

Dimension: 253×168×73.5mm / 1.5kg

Inquiry Now

1. Product description
DX-600 OTDR is a reliable instrument for measuring the characteristics of optical fiber. This product has the characteristics of compact, lightweight, simple operation, using ergonomics and touch LCD display, and has the function of data storage, the data used PC software to analyze the optical transmission quality and post implementation measurement results processing, archiving, and print. Installation and maintenance personnel of the cable by viewing the fiber test graphics in the "event", pointed out that these irregularities in the fiber, location, measurement of attenuation uniformity between them, and the resulting loss and decay.
2. Function
Automatic Measurement Mode: Only by selecting the measurement wavelength, the measurement parameters are automatically set, and the trace data is automatically saved and automatically analyzed.
Multi-wavelength Measurement Mode: In the parameter setting, the wavelength can be automatically switched into the multi-wavelength measurement mode. Under this mode, the analysis can be achieved on the attenuation state of the same fiber section under different wavelengths.
Trace Fixing Function: It can achieve the same-screen comparison and display of one trace with another real-time trace or the trace under the average measurement, which is very useful for the installation of multi-core fiber or the checking of the aged fiber in the optical fiber network already been installed.
Multi-wavelength Analysis Function: It can achieve the comparison, display and analysis functions of any trace file.
FTTx online testing, able to identify the splitter and the fiber’s end.
Large-capacity lithium-ion rechargeable battery, with the long standby time over 8 hours.
Bellcore file format (.sor), with the storage of greater than 10,000 traces.
Communication Light Detection: It can effectively protect the test instrumentation and communication equipments.
Connection State Detection: To promptly know the connection status of the instrumentation and the fiber for test.
The Switching of Measurement Mode: Through the shortcut key operation, it can achieve the flexible switching of real-time measurement mode and average measurement mode.
3. Product characteristic
To achieve easily the function of bulk amendment and batch printing.
Able to generate different forms of test reports according to user needs.
To provide various flexible printing modes: The single-page single-trace printing mode, the batch printing mode, the single-page multi-trace printing mode, the printing mode of multi-waveform display. To provide the personalized selection of printing options and page setup.
The Function of Waveform Difference Comparison: It can open several waveforms in the same window, making more easily the comparison of parameter change caused by fiber aging or other reasons.
4. Performance indicators

Technical Specifications1
Wavelength (nm) 850/1300 1310/1550 1310/1490/1550 1625
Dynamic range (dB)2 19/21 32/30 36/34 38/36 42/40 32/30/30 30/32/34/36
Pulse width (ns) 5、20、40、80、160、320、640、1280 5、20、40、80、160、320、640、1280、2560、5120、10240、20480
Event blind zone (m)3 ≤1.8m
Attenuation blind zone (m)3 ≤10m
Linearity (dB/dB) ±0.05 dB/ dB
Loss threshold (dB) 0.05
Loss resolution ratio (dB) 0.01
Sampling resolution ratio (m) 0.125 to 8
Sampling point 32K
Distance uncertainty  (m) ±(1 m + 5×10-5× distance + sampling interval)
Distance scope (km) 0.3 to180
Typical real-time refreshing duration (s) 0.2
Memory capacity of trace SD Card (8G), > 10000 pieces
Duration of measurement Defined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectable
General specification   Interface category
Dimension (H×W×D) 150×235×66   Optical interface FC/UPC (PC, and APC are selectable)
Weight 1.5kg   Data interface USB interface, SD card interface
Temperature Running temperature -10℃ to 50℃
  Memory temperature -40℃ to 70℃   Visible failure orientation VFL
Relative humidity 0% to 95% (non condensation)   Wavelength 650nm
Power supply Lithium battery; continuing working duration ≥ 8 hours   Output power (dBm) ≥-3
Warranty period 12 months   Maximum testing distance 3km
